Oshkosh HEMTT Dump Truck HG P803A PRO RC Scale Model

Oshkosh HEMMT Dump Truck RC - HG P803A Pro (No Battery/Charger)

Unleash your inner radiance with this captivating piece – a whisper of luxury, a hint of mystery, and a promise of unparalleled comfort. It’s not just an item; it’s an experience waiting to unfold. Let it elevate your everyday and become a reflection of your unique style.

$60.74 $121.48

num:

description

Product name	HG P803A PRO RC OSHKOSH HEMMT DUMP TRUCK

Product size	742224CM
Packing size	783028CM
CTN size	9329.834CM
G.W/N.W	14/13 KG
QTY/CTN	1 PCS
Main functions	1. 2.4G four-channel automatic frequency matching and full-scale synchronous remote control system 2. 2 15kg copper-tooth digital steering gears (high-power steering) 3. Independent 15A regulated power supply mode for steering steering gear 4. The secondary mechanical gear of the central transmission is adjustable (remote control adjustable) 5. The chassis structure of the whole vehicle adopts zinc alloy materials 6. The front and rear axles adopt a bevel-to-straight-tooth high-load reduction transmission structure 7. Spring steel sheet shock absorber + telescopic double shock absorber 8. Variable stroke CVD ball universal joint shaft 9. Front and rear independent linkage bridge hanging system 10. The side panels of the rear side of the car can be fully opened 11. Aluminum alloy of body floor 12. The electric telescopic rod can be operated by remote control to jack up the whole body 13. 8x8/8-wheel full-time drive, 550 high torque motor (3660 brushless motor) using planetary gear drive structure 14. Vehicle 1:12 full-scale high simulation model; 320A independent electronic governor/60A brushless ESC 15. The lighting combination and simulation sound combination can be upgraded under any platform modification 16. The first 4 wheels adopt a wire rope pulling structure to realize the same direction and synchronous steering of the four wheels
Packing List	Structure specification 1 Bolt screw (2.512) 2 801 sticker 1 Wire protection cover 2 1.5mm hexagon socket screwdriver 1 KM25mm screw 24 2.0mm hexagon socket screwdriver 1 Body decoration 02 24 2.5mm hexagon socket screwdriver 1 Body decoration 01 12 Cross wrench (small) 1 Small wrench 1 M4 flange nylon locknut 2 M34 drill screw 2 HM26mm screw 56 Electronic manual 1 Nylon cable tie 3150mm (black) 4 Mudguard (L) 2 Mudguard (R) 2 Wire rope *2

Detail part

1. Maximum climbing angle: 35° in low gear; 15° in high gear
2. Maximum wading depth: 55mm
3. The maximum load capacity of the cargo hopper: 10KG
4. Minimum turning radius: about 1 meter
5. Maximum ditch width: 180mm

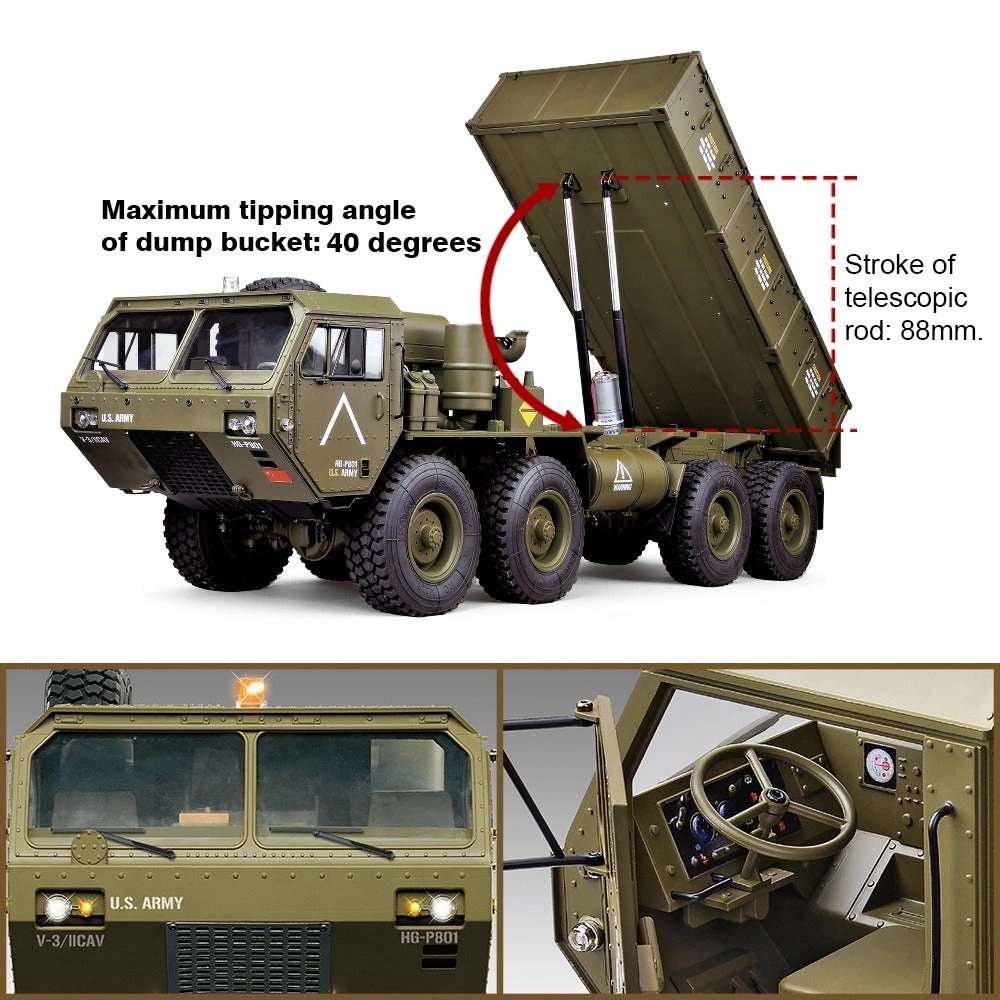

6. The maximum turning angle of the dump bucket: 40°
7. Telescopic rod stroke: 88mm
8. Telescopic speed (RLM/cm): 13
9. Rated jacking force (KG/cm): 5.0
10. Stalled-rotor jacking force (KG/cm): 7.0
